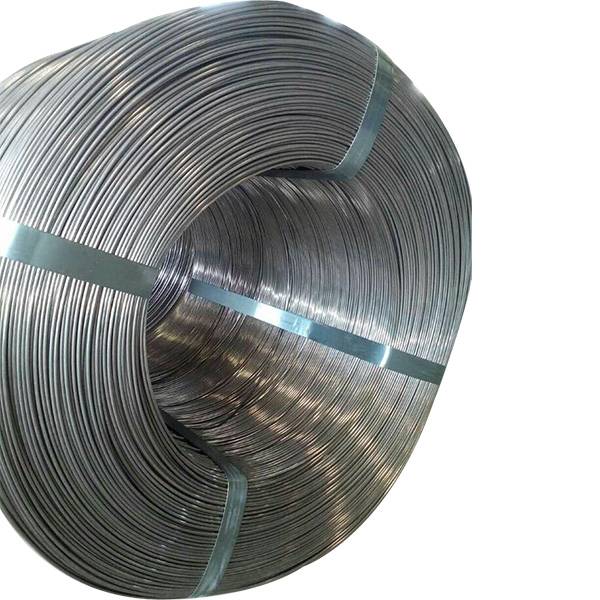

High Carbon Spring Wire

Short Description:


  • Steel Grade: Carbon steel #60, #70
  • Treatment: Bright / Zinc coated
  • Packing: In coils of 20kgs to 850 kgs.
  • Product Detail

    Product Tags

    Diameter/mm TOLERANCE/mm Tensile Strength For Wire Grades (N/mm2)
        A B C
    1.00-1.50 ±0.015 1850-2220 ———- 2090-2450
    1.50-2.00 ±0.020 1770-2080 ———– 1980-2310
    2.00-2.50 ±0.035 1670-1820 1750-1900 1970-2140
    2.50-2.70   1640-1790 1720-1870 1950-2120
    2.70-3.00   1620-1770 1700-1850 1930-2100
    3.00-3.20   1600-1750 1680-1830 1910-2080
    3.20-3.50 ±0.045 1580-1730 1660-1810 1900-2060
    3.50-4.00   1550-1700 1620-1770 1870-2030
    4.00-4.20   1540-1690 1610-1760 1860-2020
    4.20-4.50   1520-1670 1590-1740 1850-2000
    4.50-4.70   1510-1660 1580-1730 1840-1990
    4.70-5.00   1500-1650 1560-1710 1830-1980
    5.00-5.60   1470-1620 1540-1690 1800-1950
    5.60-6.00 ±0.050 1460-1610 1520-1670 1780-1930
    6.00-6.50   1440-1590 1510-1660 1760-1910
    6.50-7.00   1430-1580 1500-1650 1740-1890
    7.00-8.00   1400-1550 1480-1630 1710-1860
    8.00-8.50   1380-1530 1470-1620 1700-1850
