Hexagonal Wire Netting

Short Description:



Types Available:
▶Hot dipped galvanized before Or After weaving
▶Electro galvanized before Or After weaving
▶PVC coated hexagonal wire netting
▶Stainless steel hexagonal wire netting
Packing: packed in water proof paper, then foils (Plastic film bags), cartons Etc. Or as client’s quest



Hexagonal wire mesh widely used as fence for houses, farms, rock fall safety protection, chicken mesh, building wall reinforcement etc.


Product Detail

Metal wire expert

Product Tags

 Galvanized hexagonal wire mesh is galvanized on the surface of hexagonal wire mesh, which material could be low carbon steel, stainless steel, zinc-5% aluminum alloy (galfan) or iron. Normal zinc coating hexagonal wire mesh could be applied to chicken wire, rabbit fence, garden fence, decorative mesh, stucco netting. Heavy zinc coating hexagonal wire netting could be used as rockfall netting, gabion basket, and gabion sack. Zinc-5% aluminum alloy (galfan) usually be made into gabion basket or gabion sack.



PVC coated hexagonal wire mesh is wrapped polyvinyl chloride layer on the surface of hexagonal wire mesh. Internal wire’s material may be low carbon steel, stainless steel, zinc-5% aluminum alloy (galfan), iron or galvanized wire. PVC coating can protect the mesh from corrosion, rust, oxidation, and survive a longer life in terrible environment. This kind of hexagonal mesh is nearly impossible for rodents to chew through and can protect poultry from being hurt. It can merge into surroundings through choosing different colors

Galvanized Hexagonal Wire Netting

Mesh

Min. Galv.
G/SQ.M

Width

Wire Gauge (Diameter)
BWG

Inch

Mm

Tolerance(Mm)

3/8″ 10mm ±1.0 0.7mm – 145 2′ – 1M 27, 26, 25, 24, 23
1/2″ 13mm ±1.5 0.7mm – 95 2′ – 2M 25, 24, 23, 22, 21
5/8″ 16mm ±2.0 0.7mm – 70 2′ – 2M 27, 26, 25, 24, 23, 22
3/4″ 20mm ±3.0 0.7mm – 55 2′ – 2M 25, 24, 23, 22, 21, 20, 19
1″ 25mm ±3.0 0.9mm – 55 1′ – 2M 25, 24, 23, 22, 21, 20, 19, 18
1-1/4″ 31mm ±4.0 0.9mm – 40 1′ – 2M 23, 22, 21, 20, 19, 18
1-1/2″ 40mm ±5.0 1.0mm – 45 1′ – 2M 23, 22, 21, 20, 19, 18
2″ 50mm ±6.0 1.2mm – 40 1′ – 2M 23, 22, 21, 20, 19, 18
2-1/2″ 65mm ±7.0 1.0mm – 30 1′ – 2M 21, 20, 19, 18
3″ 75mm ±8.0 1.4mm – 30 2′ – 2M 20, 19, 18, 17
4″ 100mm ±8.0 1.6mm – 30 2′ – 2M 19, 18, 17, 16

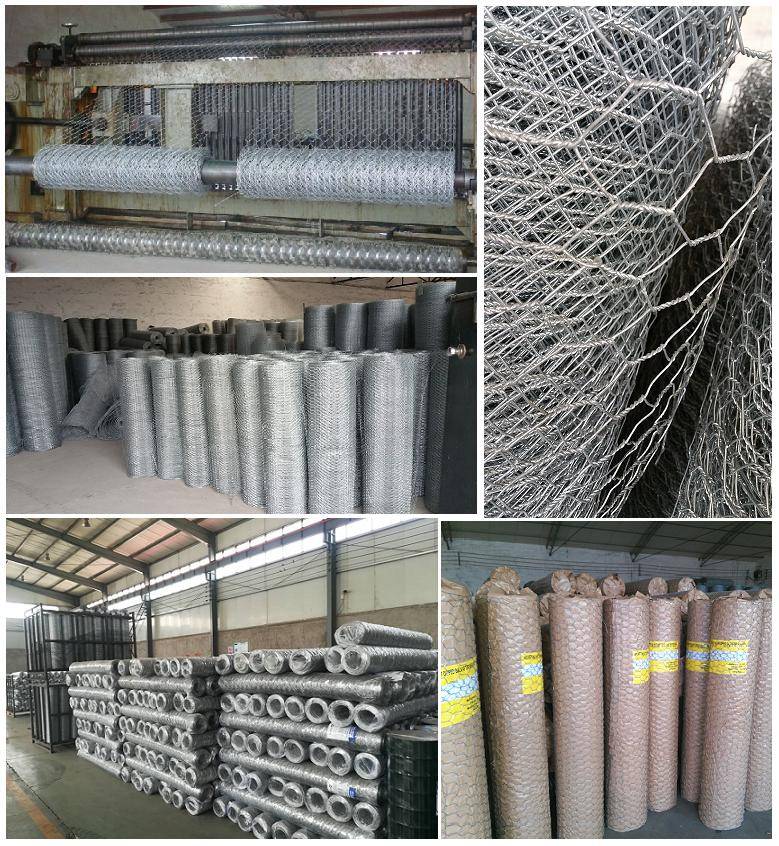

Hexagonal wire mesh factory


  • Previous:
  • Next:

  • Hebei Five Stars is an expert in building materials and hardware. After more than 20 years of development, it has developed from a simple trading company to a large enterprise with many cooperative factories, such as Five Stars Galvanized Wire Cooperative Factory, Five Star Iron Nail Cooperative Factory, Five Star Wire Screen Cooperative Factory and so on. It has the world’s advanced production equipment and strict product quality management system. Because our factory is located near the important steel production base in North China, we have the advantage of price. Our galvanized wire, nails, wire mesh and other building materials products have been sold to more than 40 countries such as the United States, Mexico, Panama, Brazil, Argentina, New Zealand, Australia, South Africa, the United Arab Emirates, Ethiopia, Spain, Portugal and so on.
    As long as you make a simple inquiry, we will reply to you promptly.
